SONASCREEN®
Acoustic Camera

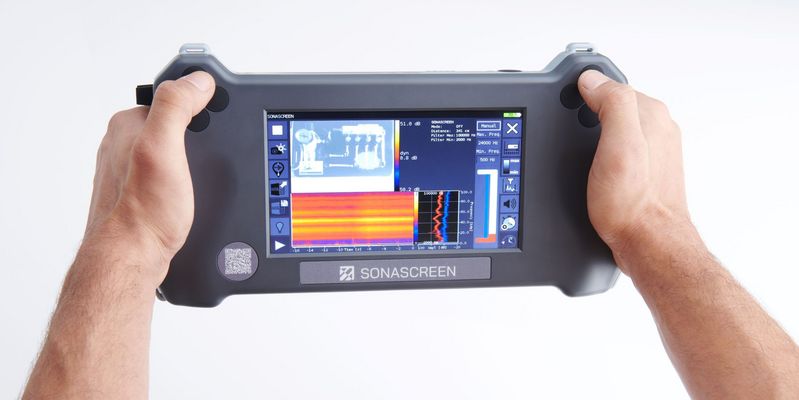

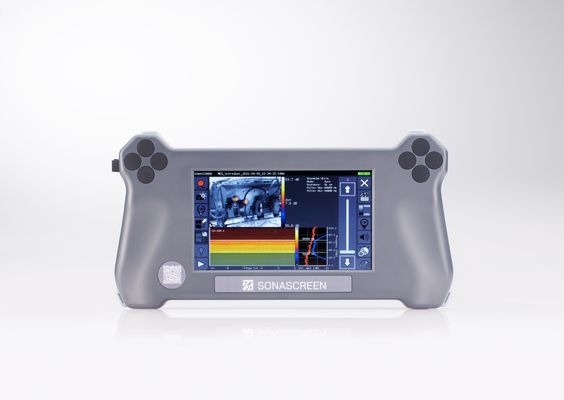

The handheld acoustic camera SONASCREEN generates acoustic images from both the audible and ultrasound frequency range. The device locates sound sources in real time and displays the results immediately on the screen. Furthermore, the camera provides audible feedback through industrial headphones. We make ultrasound audible and visible.
Advantages at a Glance
Fast detection of sound sources in the audible and ultrasonic range (from 20 kHz to 100 kHz) even over long distances
Easy handling - no time-consuming training necessary
Wide frequency range (2 kHz – 100 kHz) allows detection of ultrasonic sources above typical industrial noise (typically up to 50 - 60 kHz)
Detection of fast moving sound sources e.g. leakages at robots due to a high resolution of 100 fps and global shutter function of the camera
Special preset (modes) for leakage detection and partial discharge detection (coming soon)

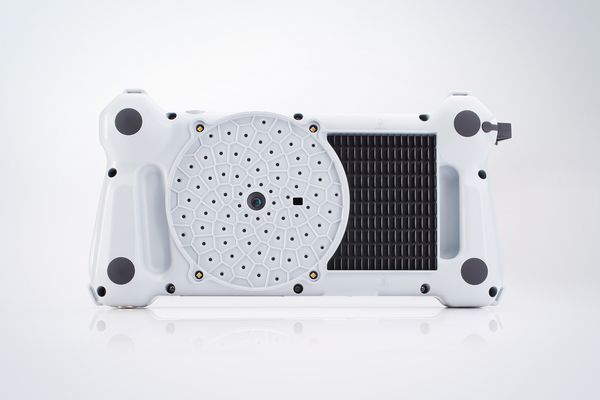

Suitable for industrial use due to encapsulated microphones (IP 54 / protection against water and dust)
Applications

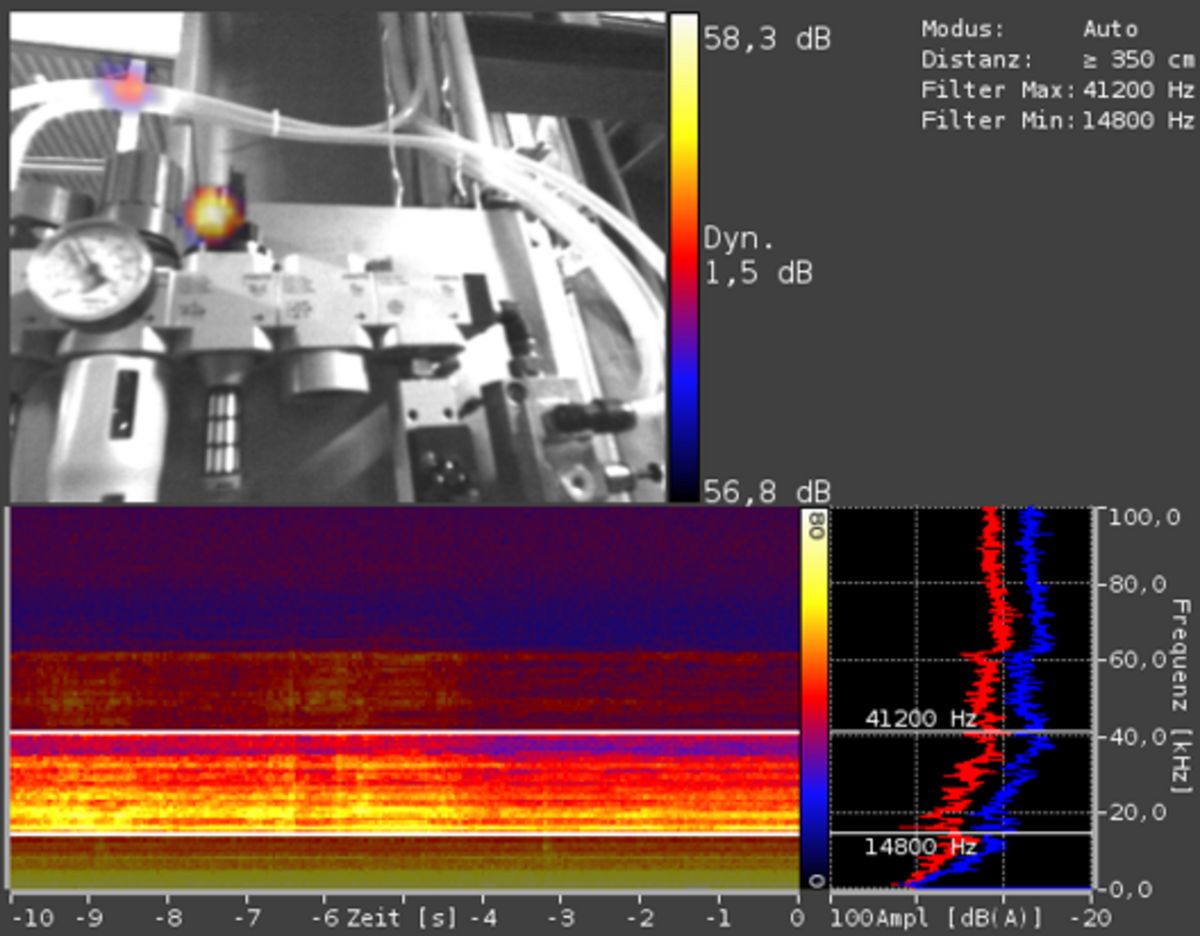

Ultrasonic Leak Detection
- Broadband ultrasound
- Visualization of leakages in a spectrogram
- Adjustable bandpass filter and dynamic range
- Filters out interfering sound or ultrasound in industrial environments
- Display of multiple leakages in one image

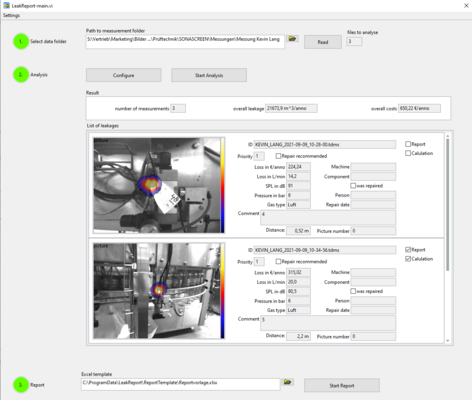

- Reporting: Software for leak detection audits
- Allows gross loss estimation
- Free software for leakage loss assessment and report generation in EXCEL and PDF
The SONASCREEN® helps you to save energy costs and is your optimal companion to reduce your CO2 emissions and support you in energy audits.

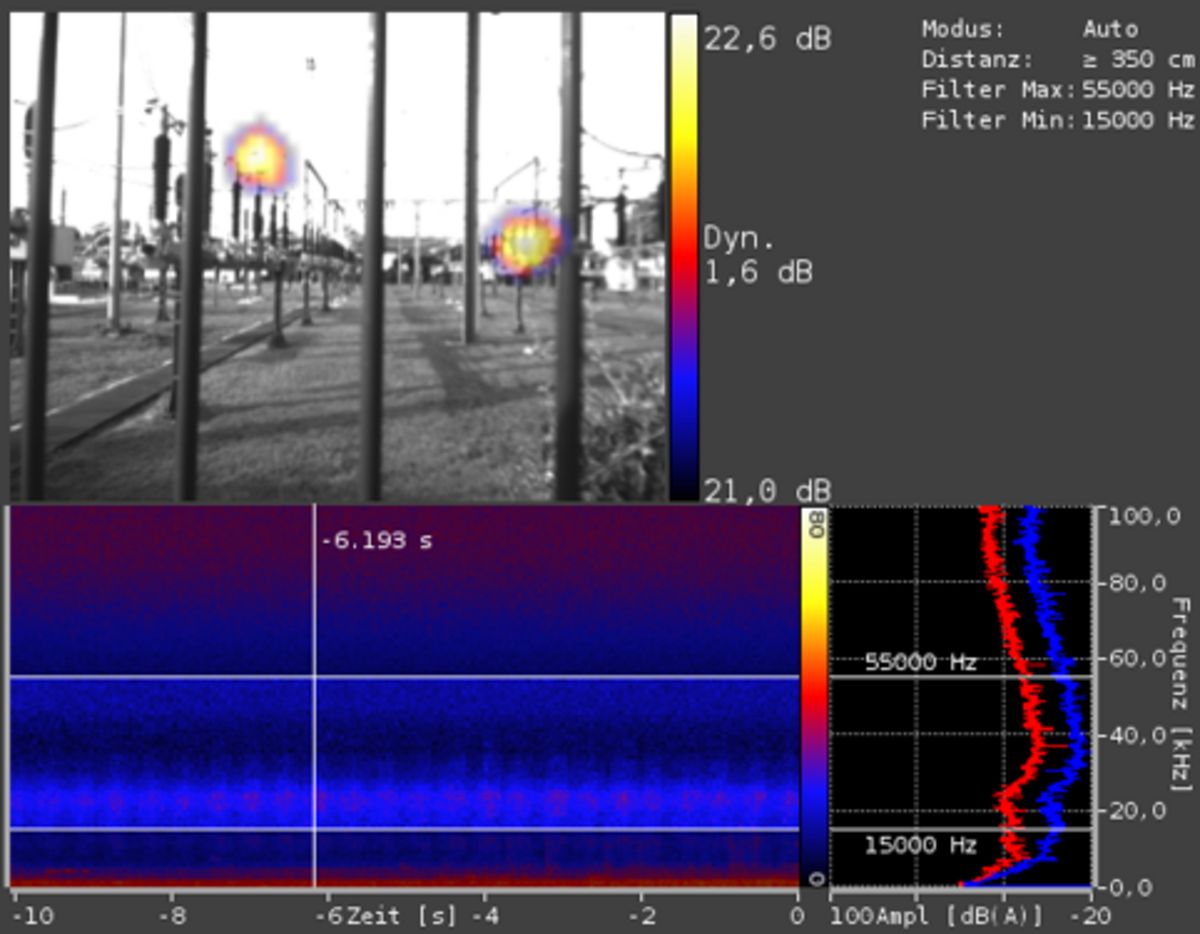

Partial Discharge Detection with Ultrasound
- Detect partial discharges in the ultrasonic range at the earliest stage
- Helps you to ensure the reliability and safety of equipment
- Recognize typical characteristics of partial discharges in the spectrogram
- Display multiple partial discharges in one image
- Free software for evaluation of electrical partial discharges and report generation in EXCEL and PDF
