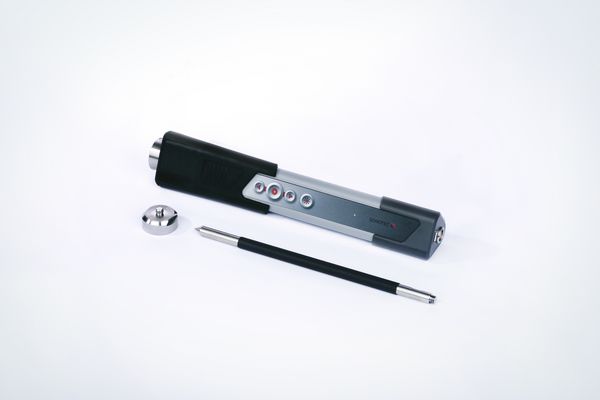

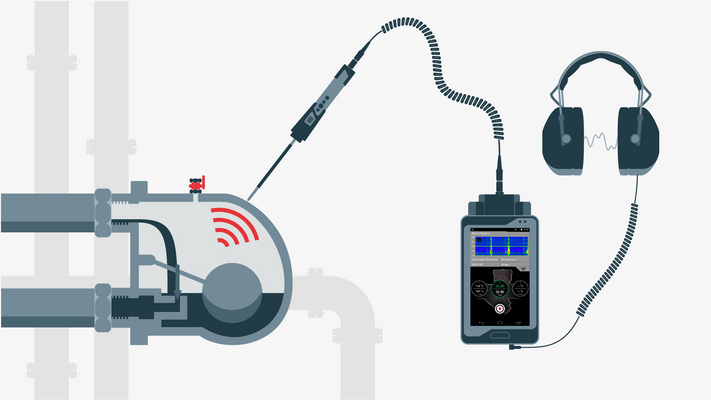

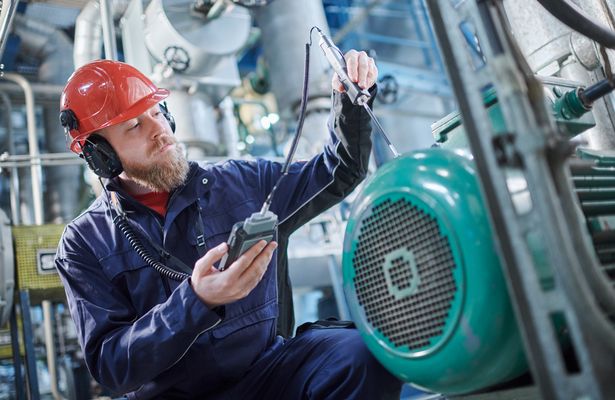

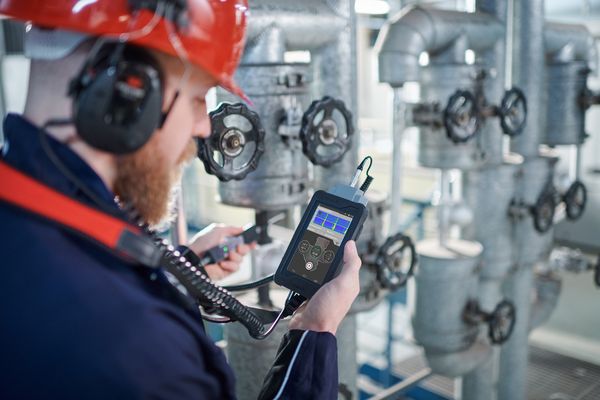

The BS20 structure-borne sound and temperature sensor with accessories for different testing work has been specially designed for the following tasks:
Frequency range 15 kHz to 100 kHz
Simultaneous analysis of the ultrasound frequency range between 15 kHz to 100 kHz
Integrated infrared temperature sensor
The integrated infrared temperature sensor allows for contactless and quick recording of the test object's surface temperature. The size of the visual recording field depends on the distance between the sensor and the test object.
LED lights
The LED lights act as a torch, making it easier to connect the sensor to test points in poorly lit environments.
| Design | Contact Sensor for the Detection of Structure-Borne Sound with exchangeable Waveguides, contactless Infrared Temperature Sensor, LED Light |
|---|---|
| Operation | Via Buttons on the Sensor or on the Device Buttons: Start/stop Testing, LED Light, Volume |
| Frequency Range | 15 kHz … 100 kHz |
| Temperature Measurement Range | -70 … +380 °C Object Temperature |
| Measurement Resolution | Ultrasound: 1 dB, Temperature: 1 K |
| Power Supply and Communication | Cable Connection with the SONAPHONE (160 cm): LEMO Connection |
| Dimensions (W x H x D) | 30 x 155 x 30 mm |
| Weight | 140 g (without Accessories) |
| Materials | Sensor Housing: Plastic (Polycarbonate: ABS), gray Waveguides: Stainless Steel |
| Operating Temperature | -10 °C … +65 °C |
|---|---|
| Storage Temperature | -20 °C … +65 °C |
| Protection Type | IP40 |
| Standards and Guidelines | EMC Directive 2014/30/EU WEEE Directive 2012/19/EU RoHS Directive 2011/65/EU |

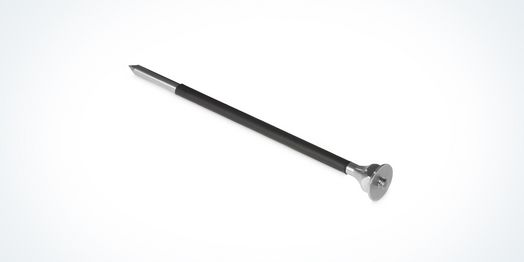

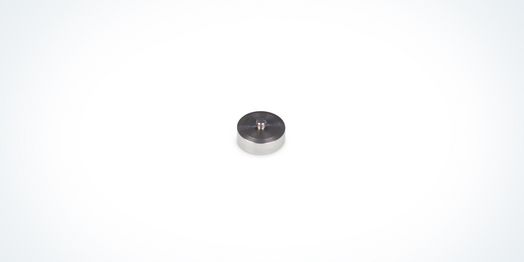

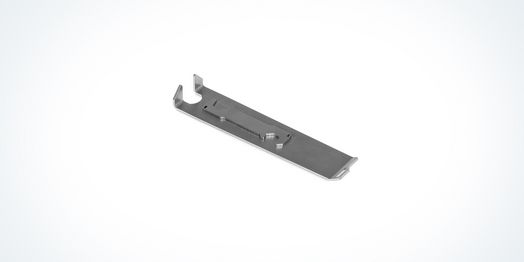

| Accessories (some of which are optional) | Short Waveguide BS20-1: Length: 22 mm, Diameter: 18 mm, Weight: 15 g Long Waveguide BS20-2: Length: 150 mm, Diameter: 18 mm, Weight: 33 g Magnetic Holder BS20-3 Wrench Set for assembling and disassembling Waveguides |
