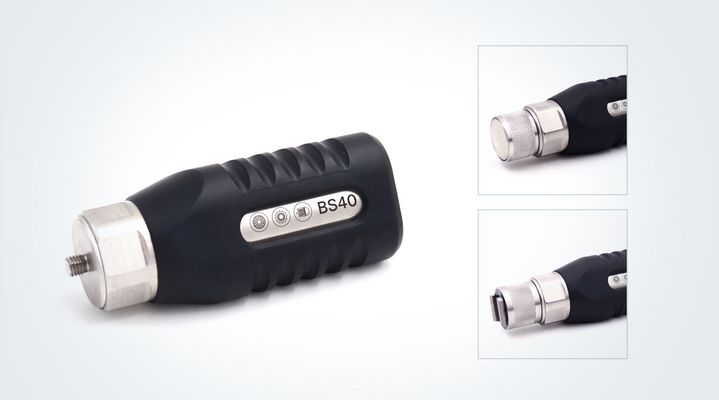

BS40
Broadband Structure-Borne Sound Sensor
The broadband structure-borne sound sensor BS40 is used in conjunction with the portable SONAPHONE ultrasonic testing device in the following fields of application:

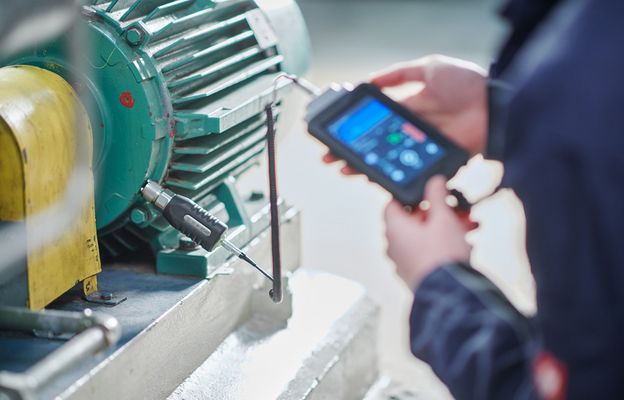

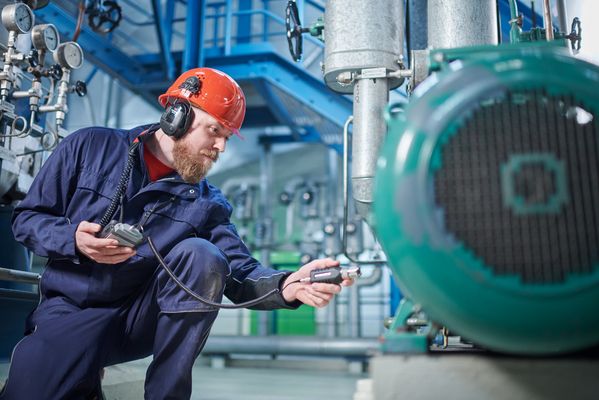

- Condition monitoring of rotating parts of machines
- Monitoring and diagnostics of failures (e.g. lubrication status) and defects at roller bearings.

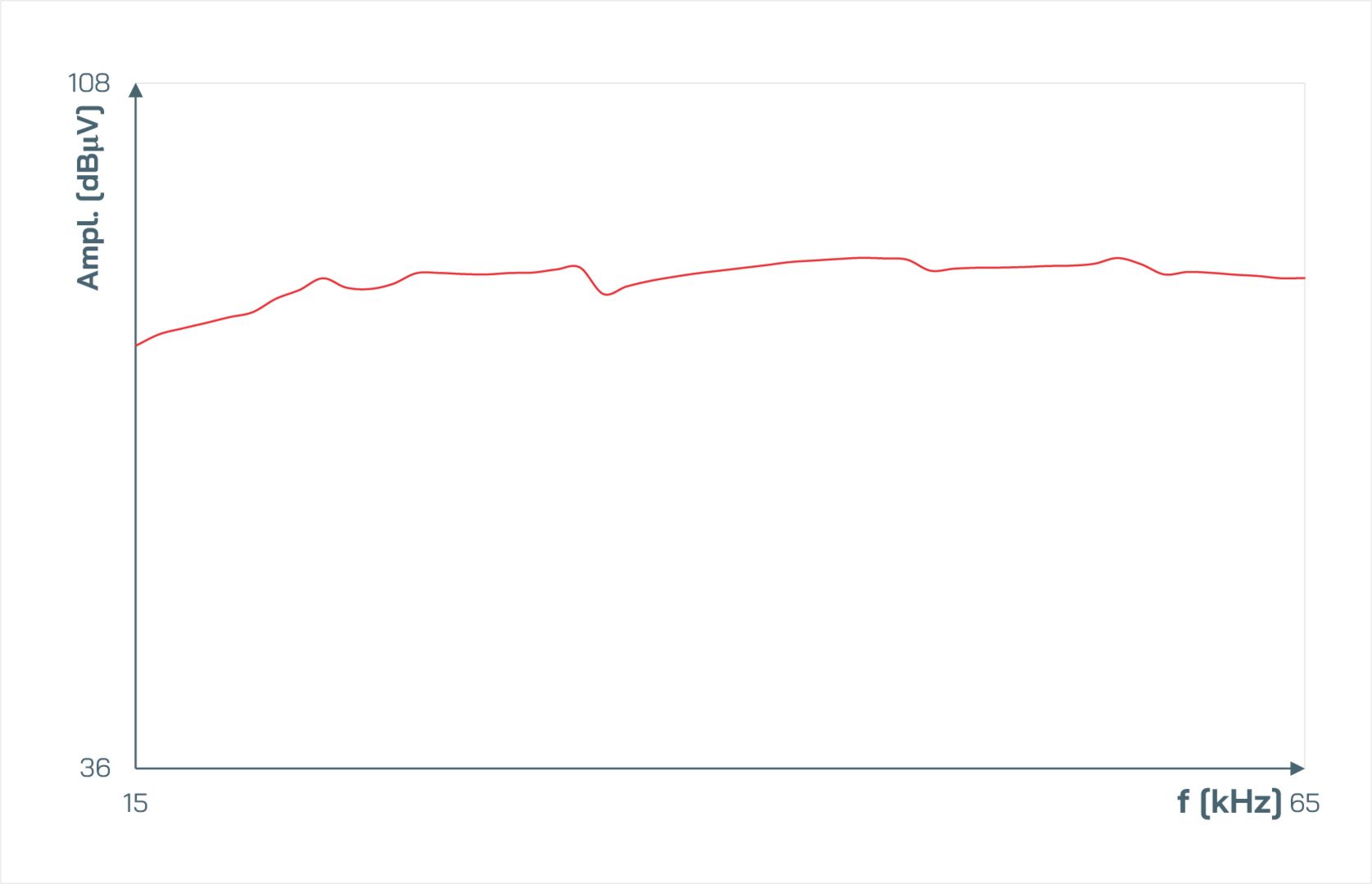

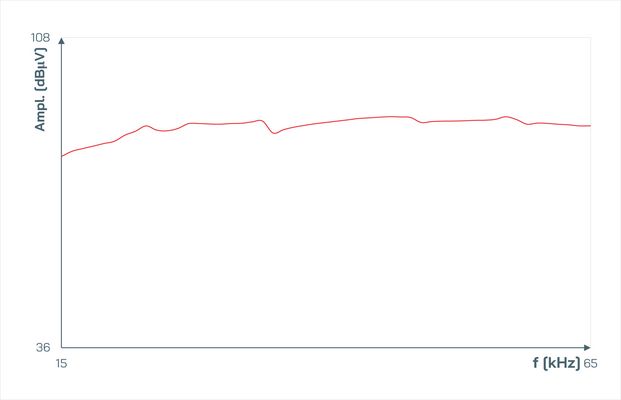

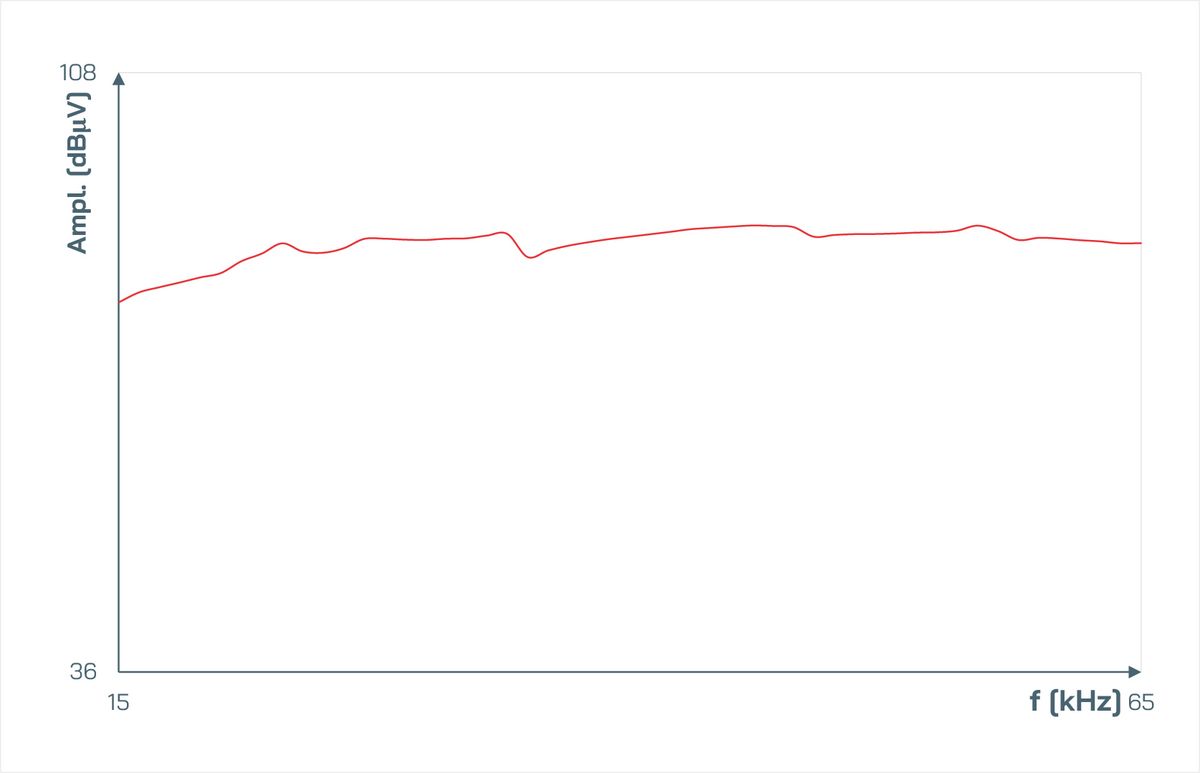

Frequency response at excitation 20 m/s²
Technical Data
| Design | Structure-Borne Sound |
|---|---|
| Frequency Range | 150 Hz … 100 kHz |
| Power Supply and Communication | Cable connection with the SONAPHONE: LEMO connector (160 cm, see SONAPHONE scope of delivery) |
| Weight | 210 g (without accessories) |
| Materials | Stainless steel, rubber (NBR) |
Ambient Conditions
| Operating Temperature | -10 °C … +65 °C |
|---|---|
| Storage Temperature | -20 °C … +65 °C |
| Protection Type | IP50 |
| Standards and Guidelines | EMC Directive 2014/30/EU, WEEE Directive 2012/19/EU, RoHS Directive 2011/65/EU |
| Optional Accessories | Multi-purpose magnetic base |
