Sound Library

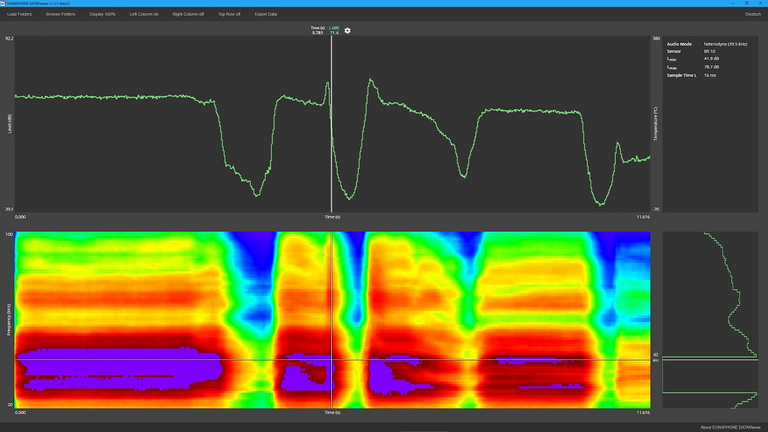

Leakage 1 | Example 1

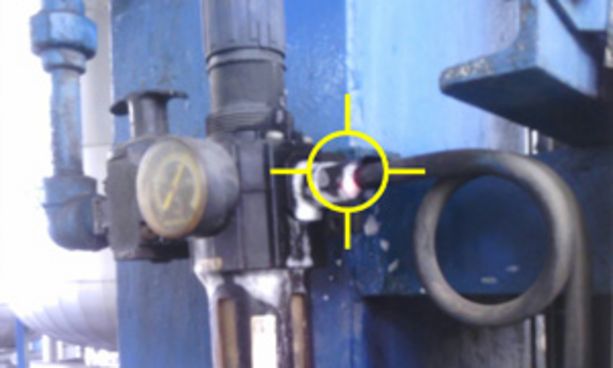

- Leakage on compressed air line
- Equipment: SONAPHONE & airborne sound sensor BS10

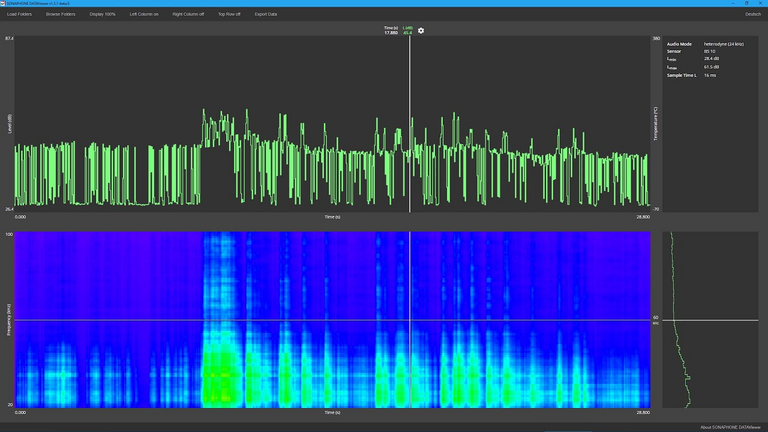

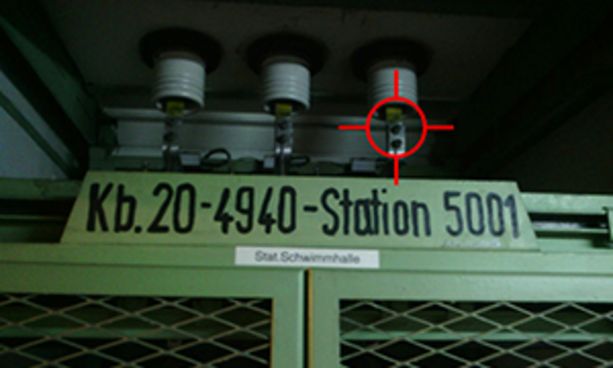

Electrical Inspection | Example 1
- Type of partial discharge: Tracking on an insulator
- Characteristics: Discharge peaks, usually at irregular intervals | "Crackling" background noise and other irregular "popping" sounds
- Equipment: SONAPHONE with airborne sound sensor BS10

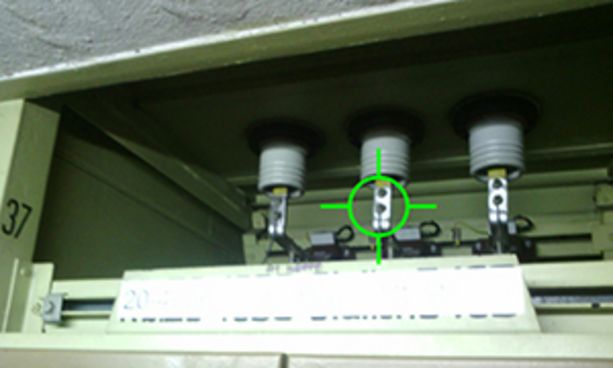

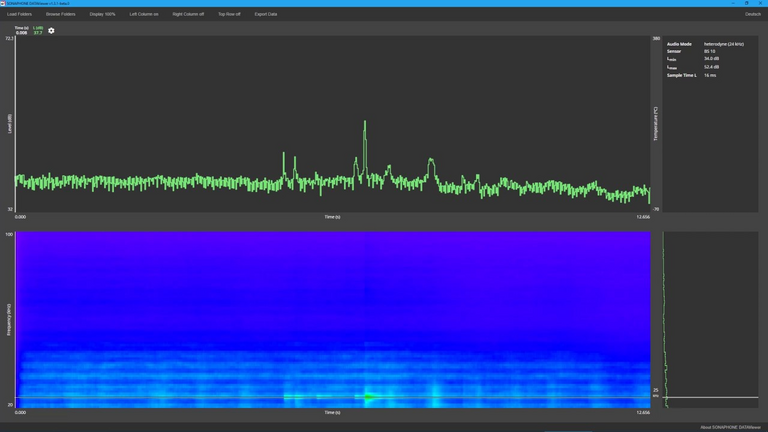

Electrical Inspection | Example 2
- Type of partial discharge: Corona on an insulator
- Characteristics: Crackling sound that is uniform
- Equipment: SONAPHONE with airborne sound sensor BS10

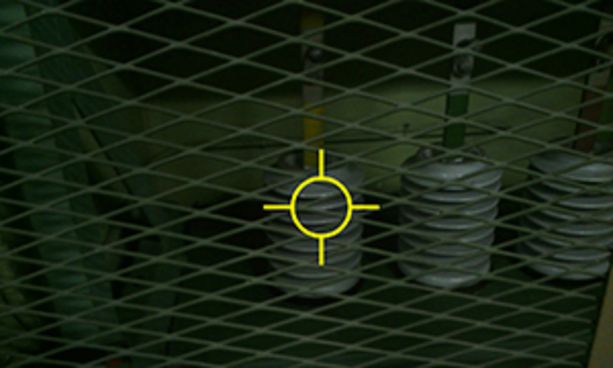

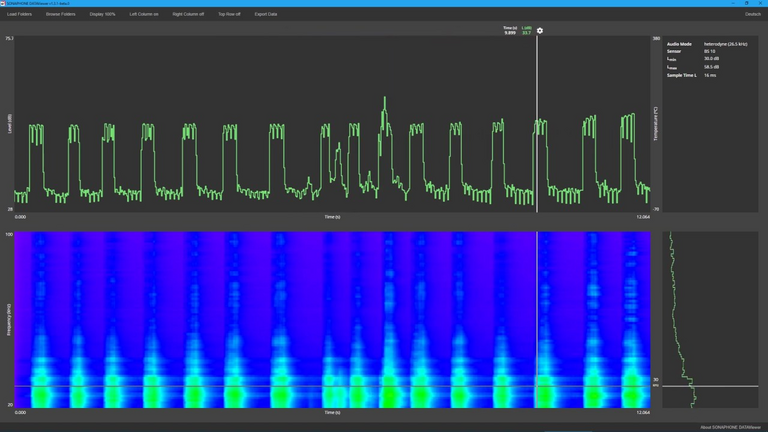

Electrical Inspection | Example 3
- Type of partial discharge: Arcing
- Characteristics: Short and striking bursting noises
- Equipment: SONAPHONE with airborne sound sensor BS10

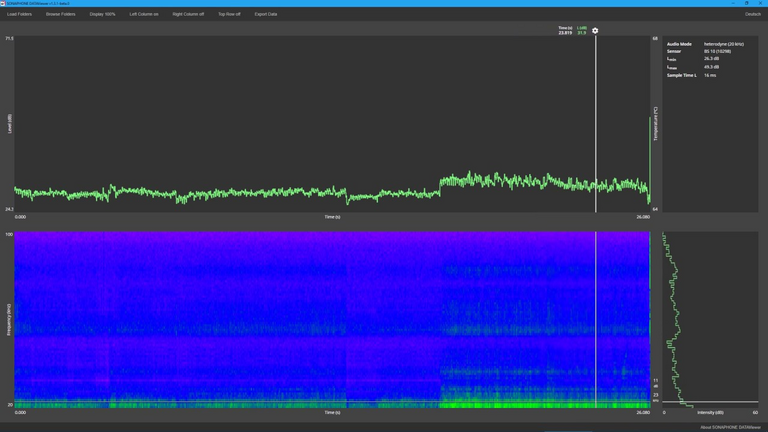

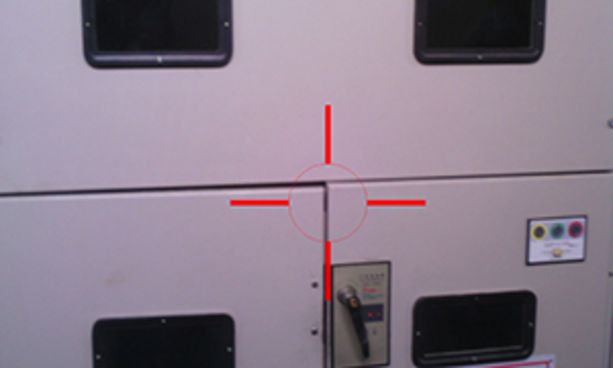

Electrical Inspection | Example 4
- Type of partial discharge: Corona on a control cabinet
- Characteristics: Crackling sound that is uniform
- Equipment: SONAPHONE with airborne sound sensor BS10

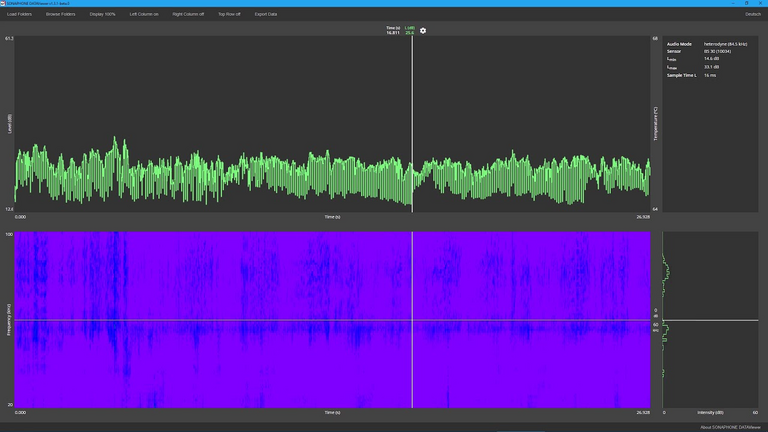

Electrical Inspection | Example 5
- Type of partial discharge: Corona on an insulator
- Characteristics: Crackling sound that is uniform
- Equipment: SONAPHONE with parabolic sensor BS30
- Distance: <20 meters

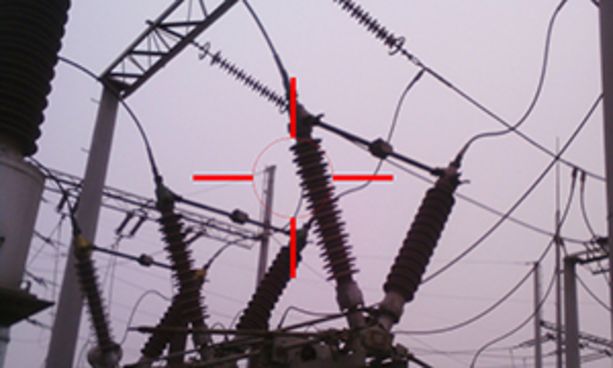

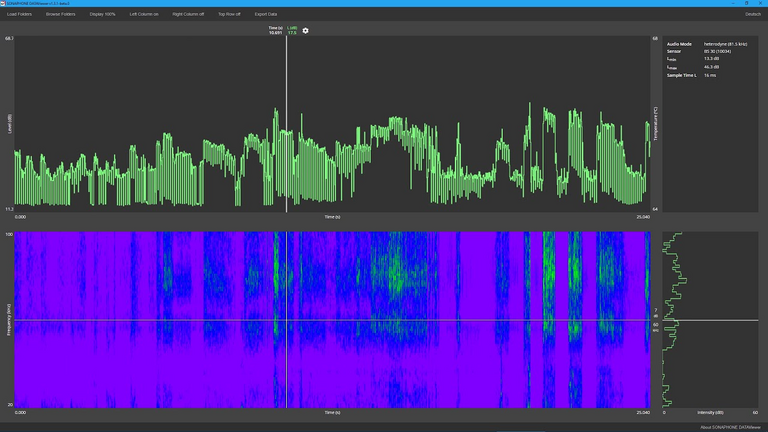

Electrical Inspection | Example 6
- Type of partial discharge: Tracking on an insulator
- Characteristics: Discharge peaks, usually at irregular intervals
- Equipment: SONAPHONE with parabolic sensor BS30
- Distance: 10 meters

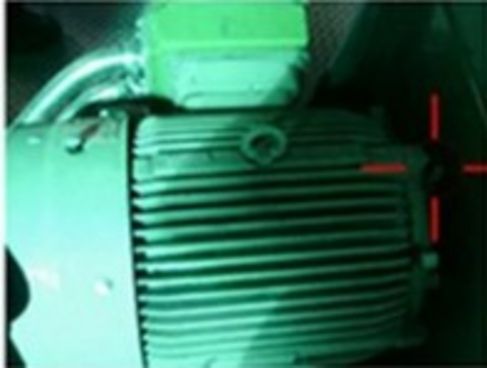

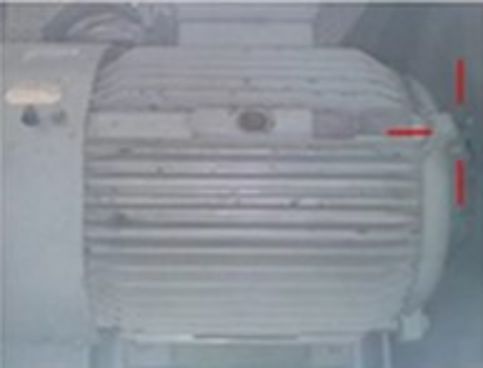

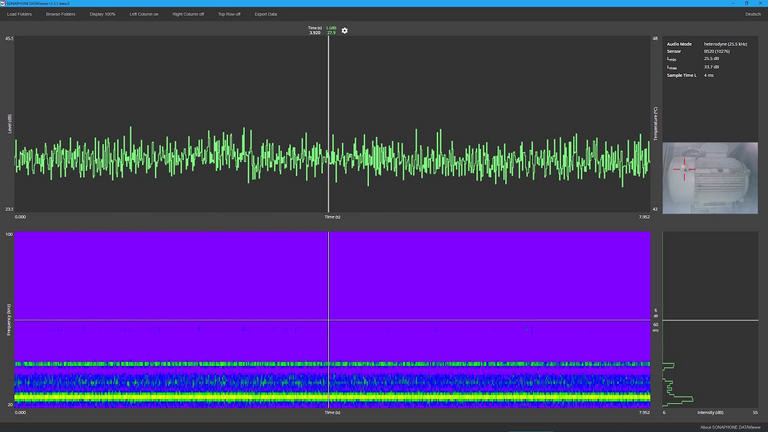

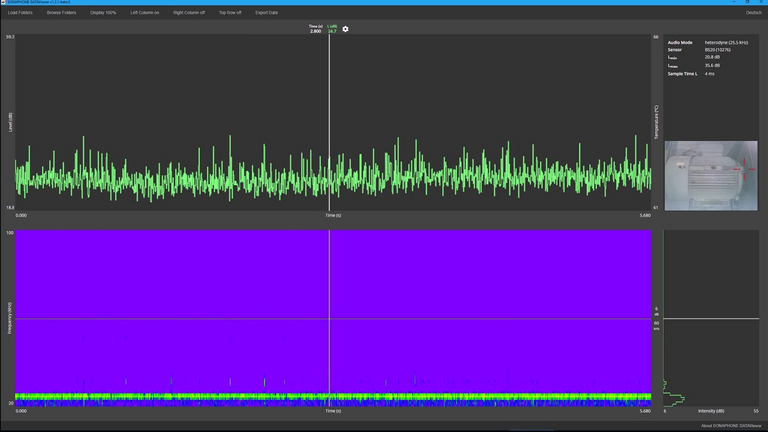

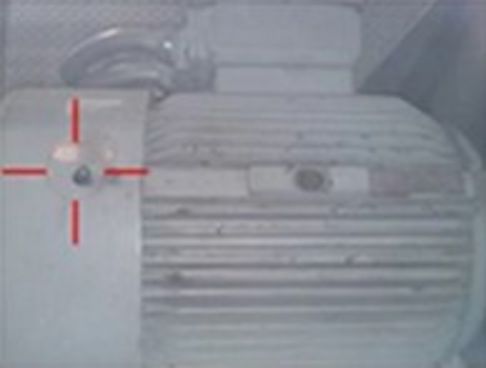

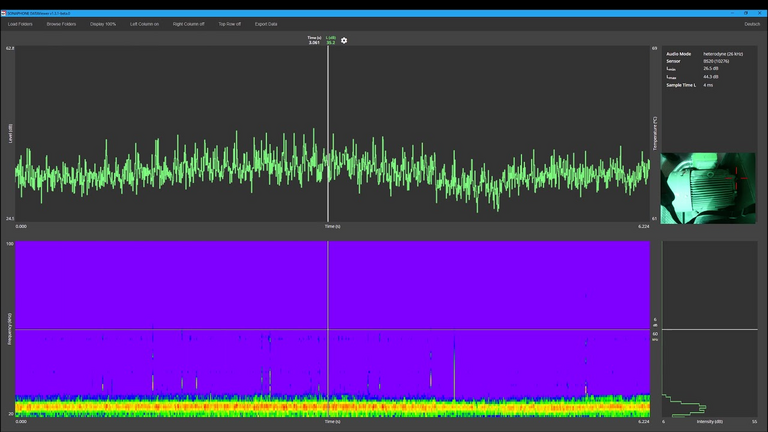

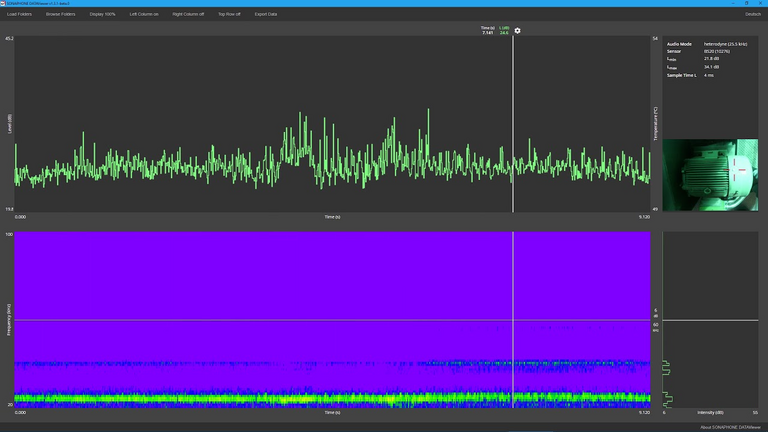

Comparison of 2 Bearings | Example 1

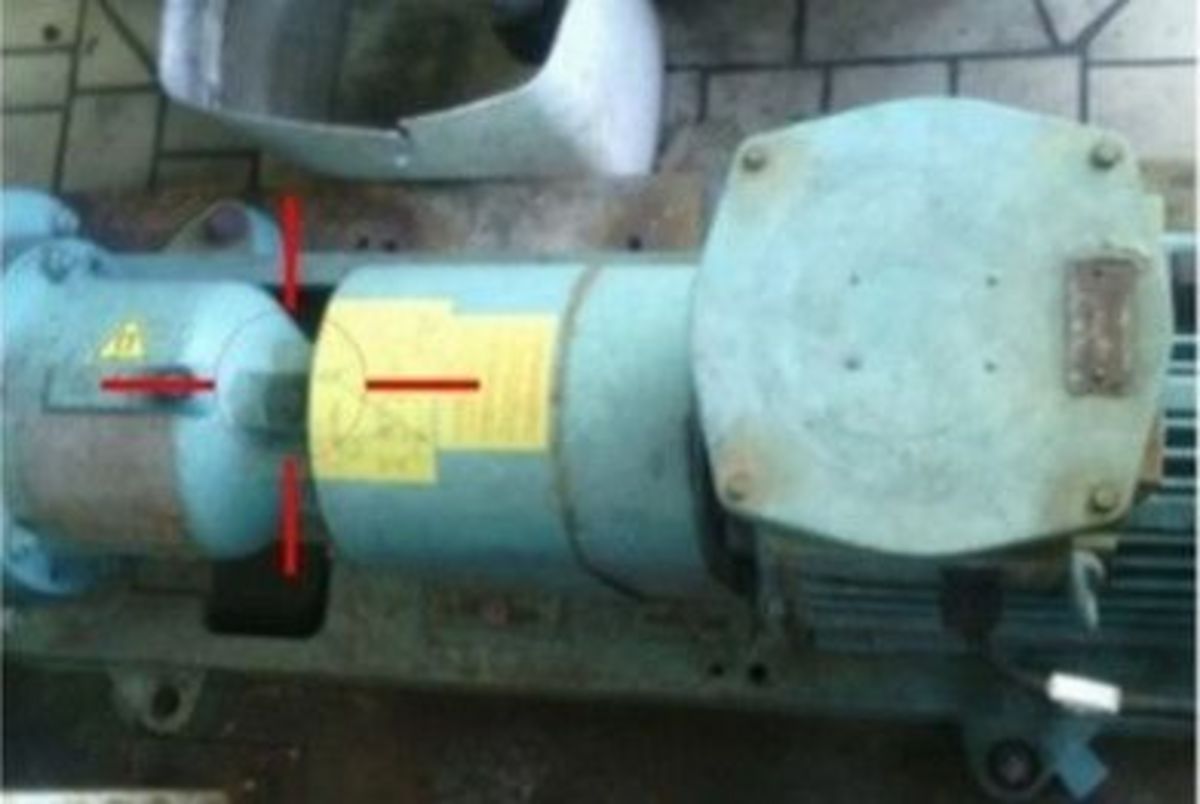

- Bearing comparison on 2 pumps (same bearings / same load / same manufacturer)
- Equipment: SONAPHONE and BS20 with long waveguide
- Recorded at the grease zerp
- Bearing failure at bearing 1

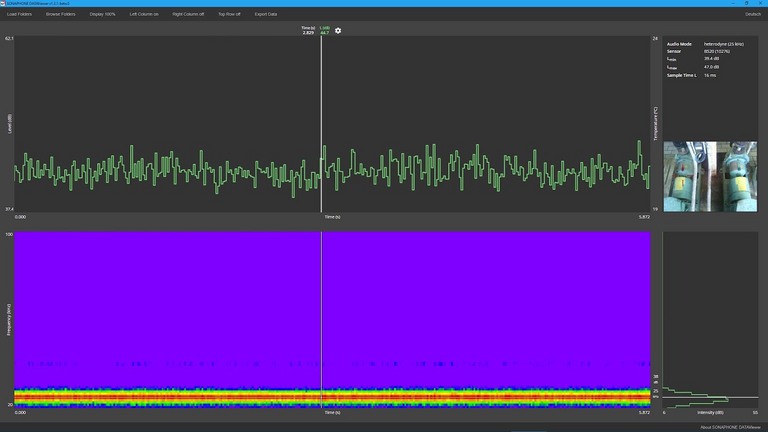

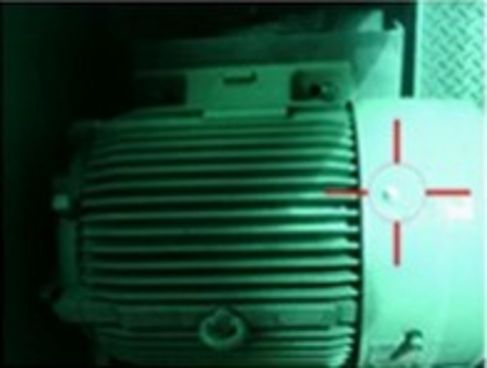

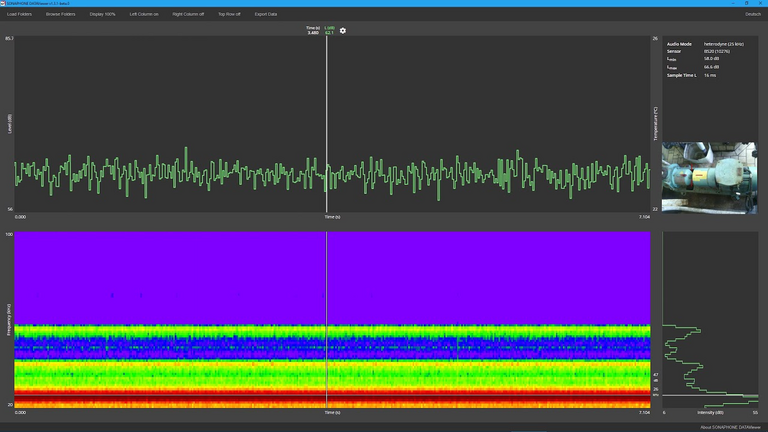

Comparison of 2 Bearings | Example 2

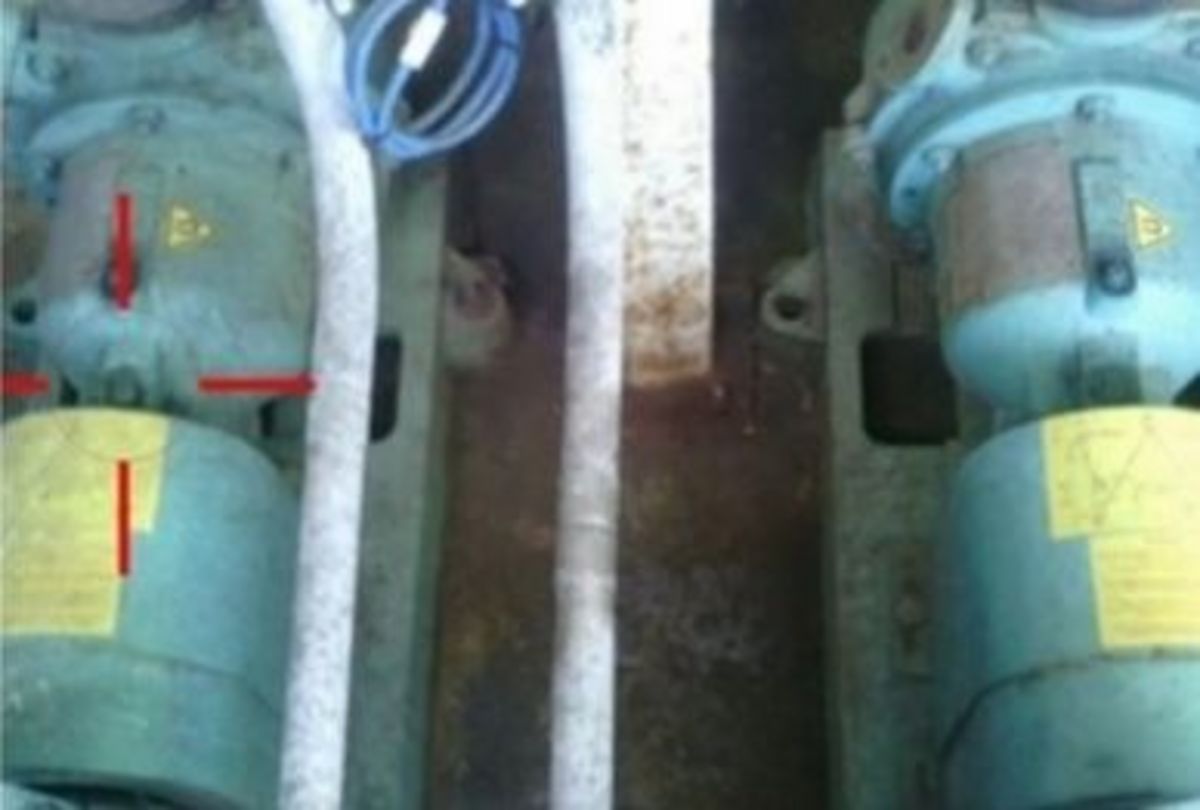

- Bearing comparison on 2 pumps (same bearings / same load / same manufacturer)
- Equipment: SONAPHONE and BS20 with long waveguide
- Recorded at the grease zerp
- Bearing failure at bearing 1

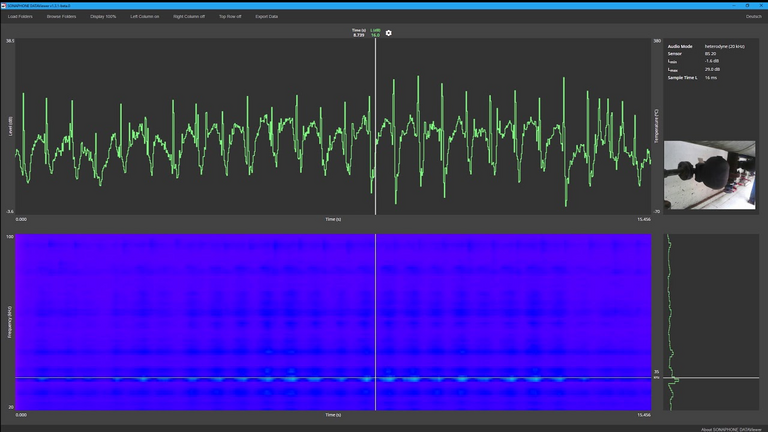

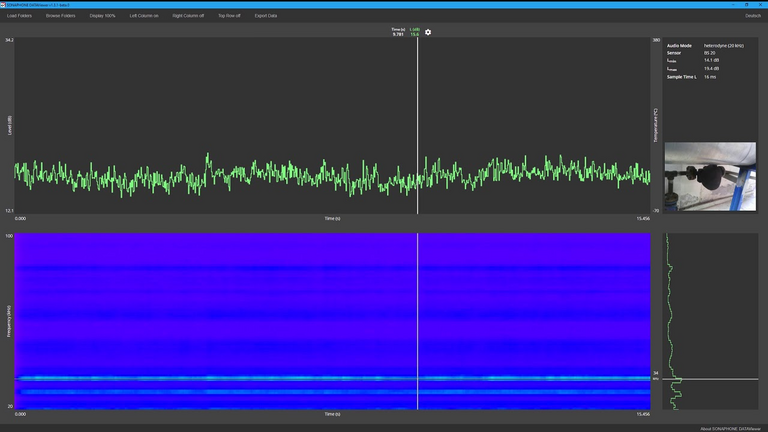

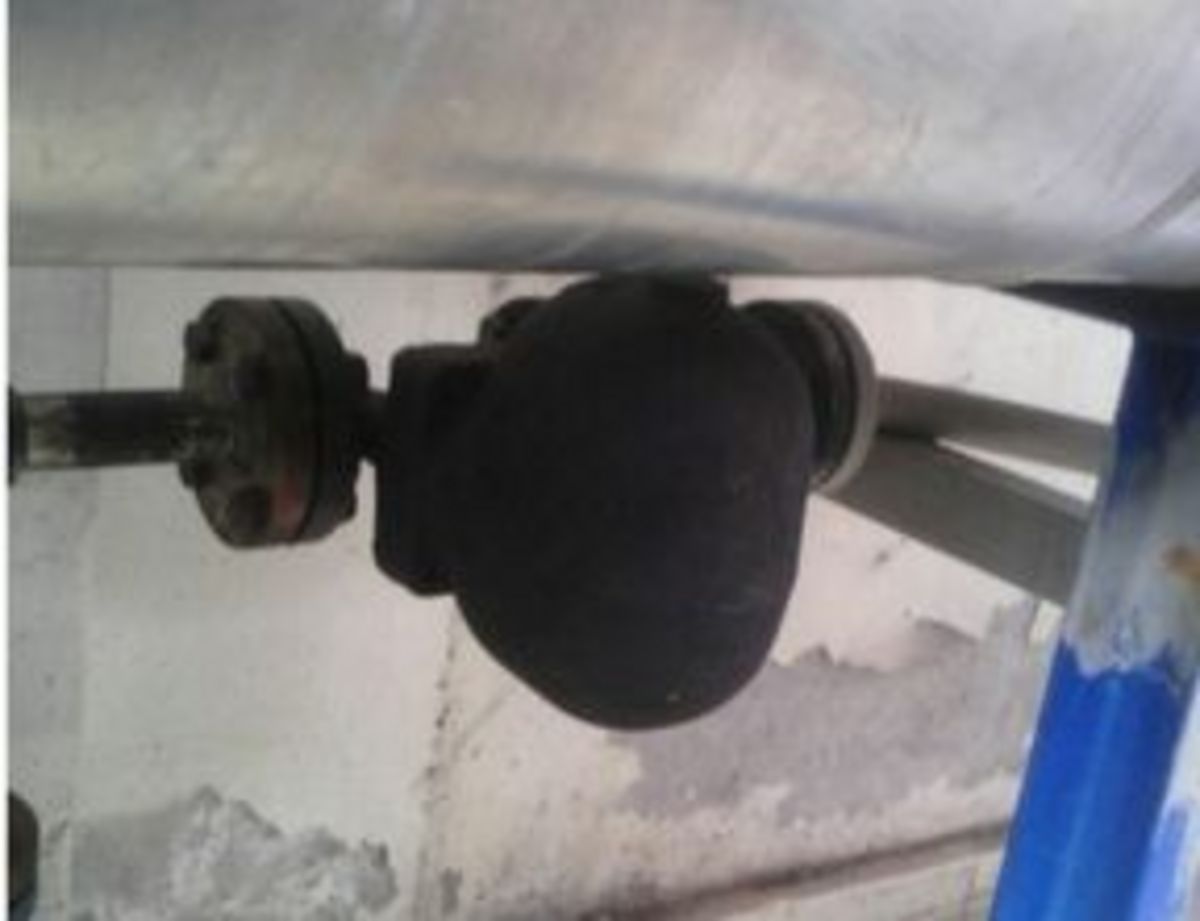

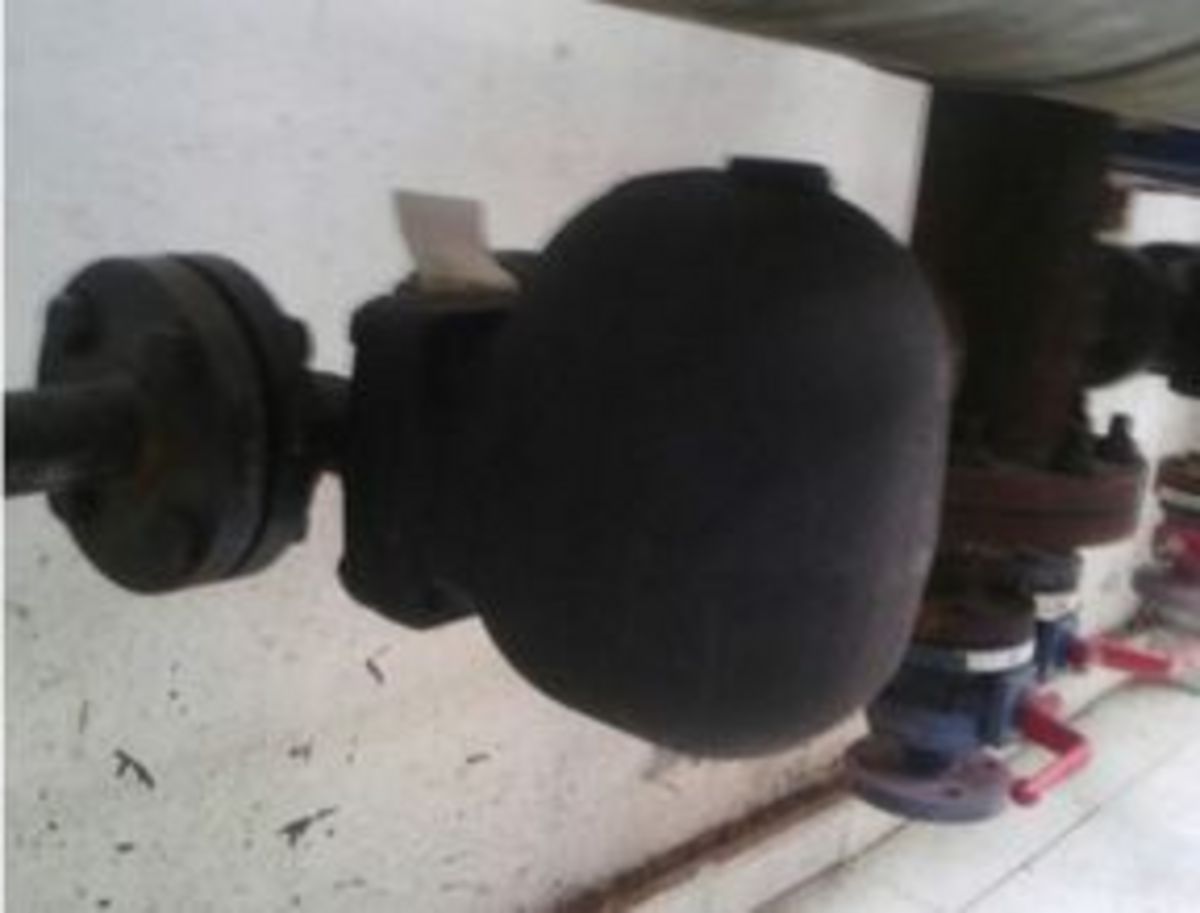

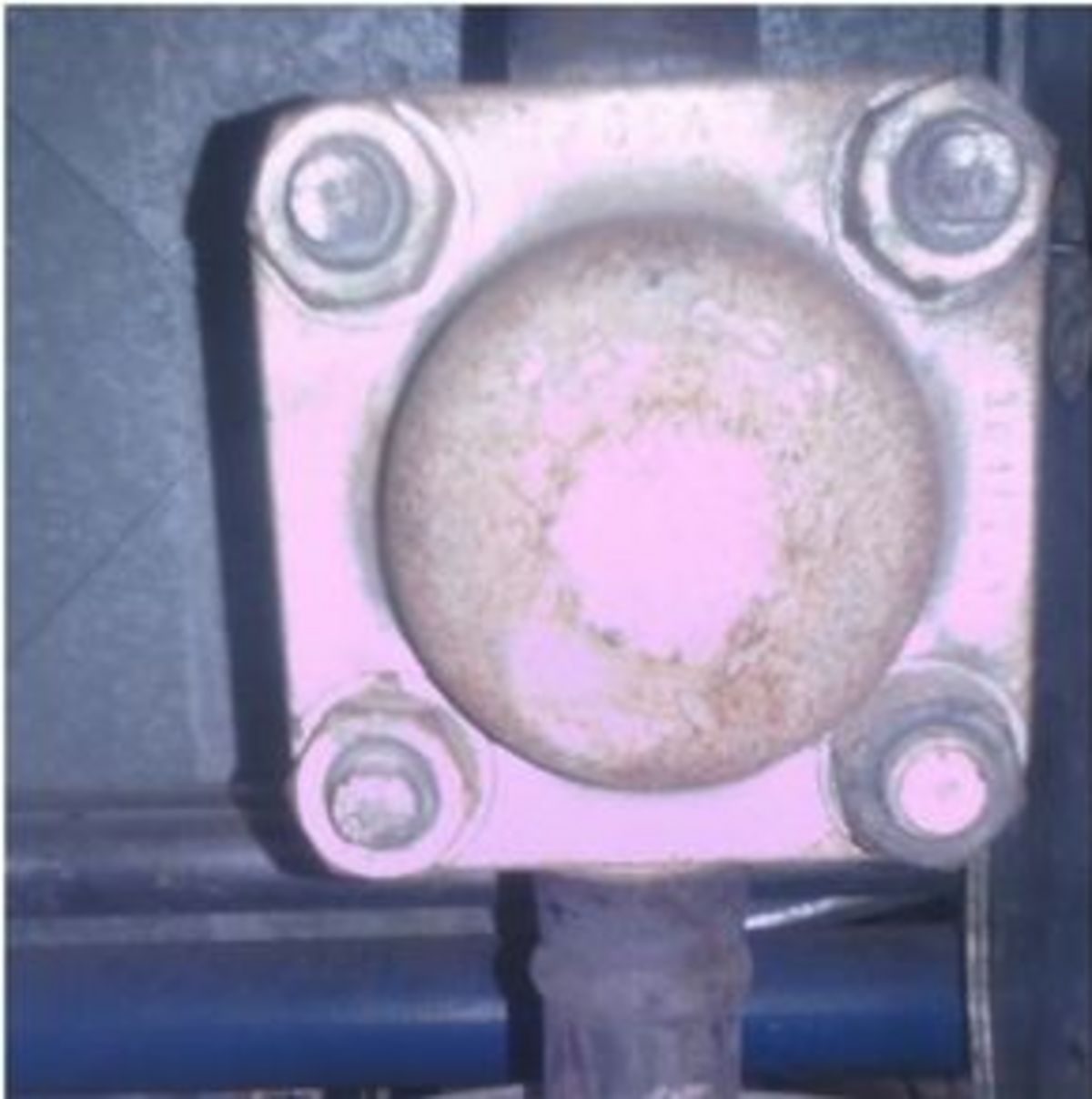

Float Steam Trap (Mechanical Steam Trap): Faulty | Intact | Example 1
- Comparison of two bimetallic steam traps (same pressure / same type / same manufacturer)
- Equipment: SONAPHONE and BS20 with long waveguide
- Trap 1: faulty
- Trap 2: intact

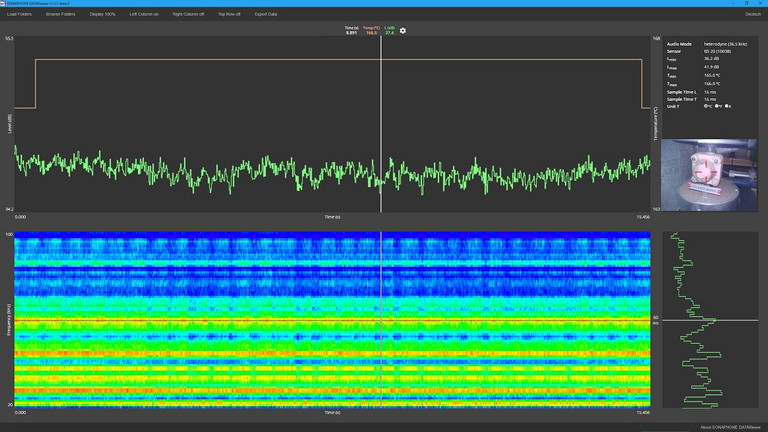

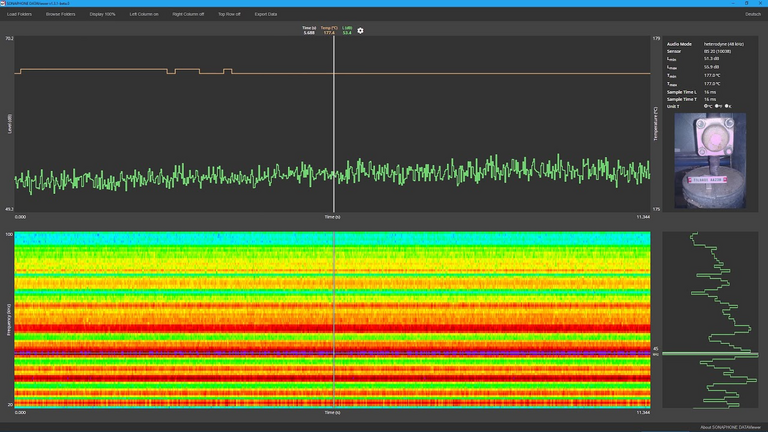

Bimetallic Steam Trap: Faulty | Intact | Example 2
- Comparison of two bimetallic steam traps (same pressure / same type / same manufacturer)
- Equipment: SONAPHONE and BS20 with long waveguide
- Trap 1: faulty
- Trap 2: intact

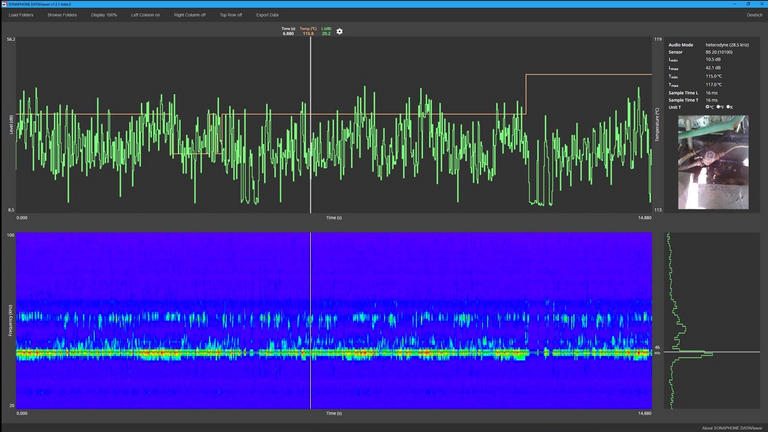

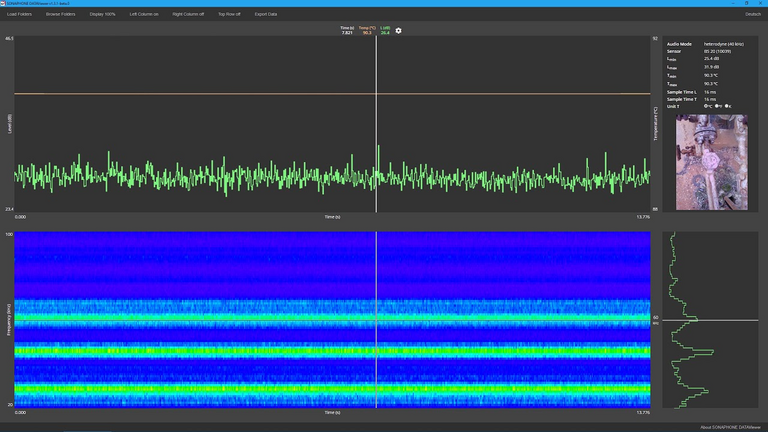

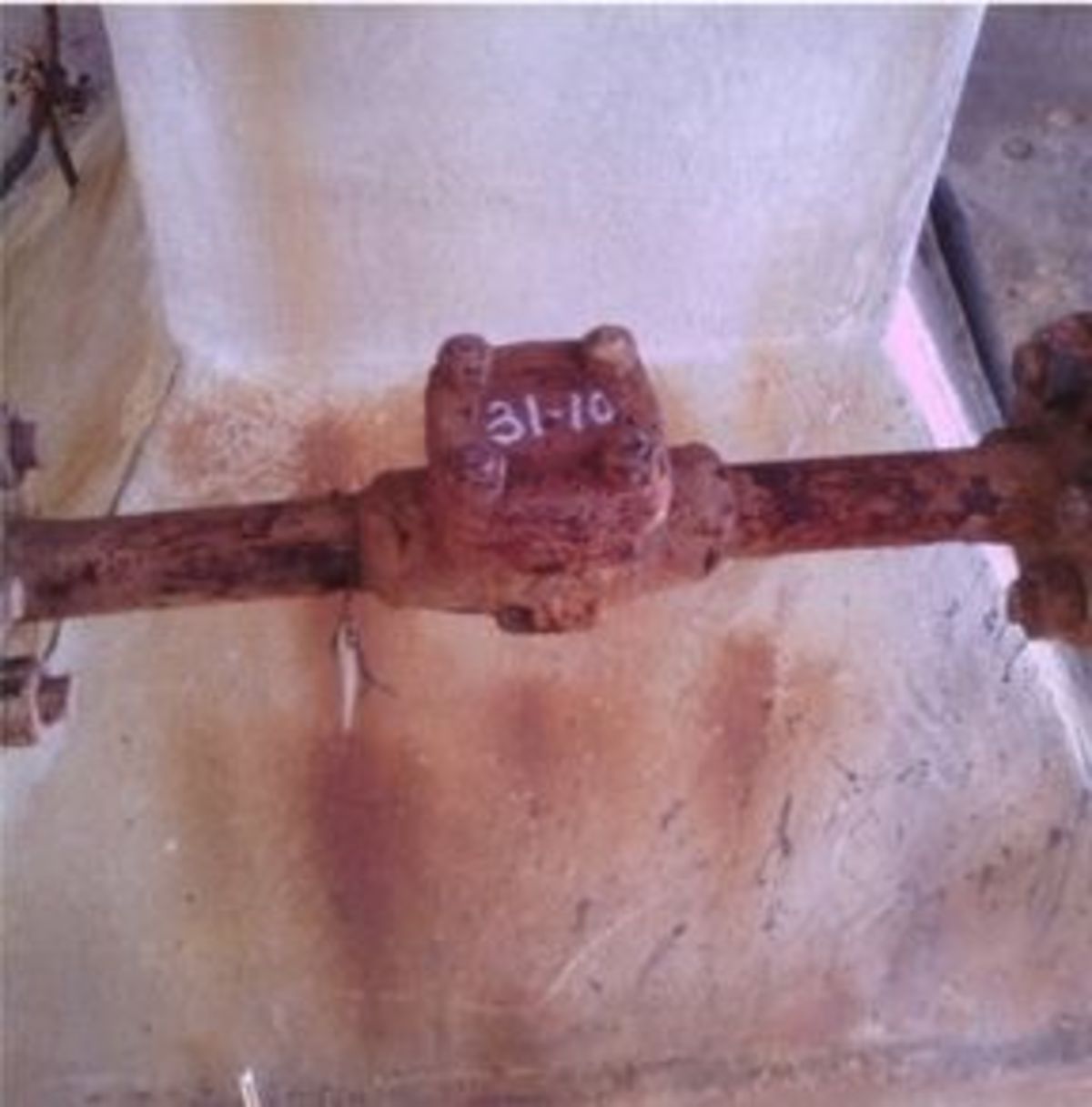

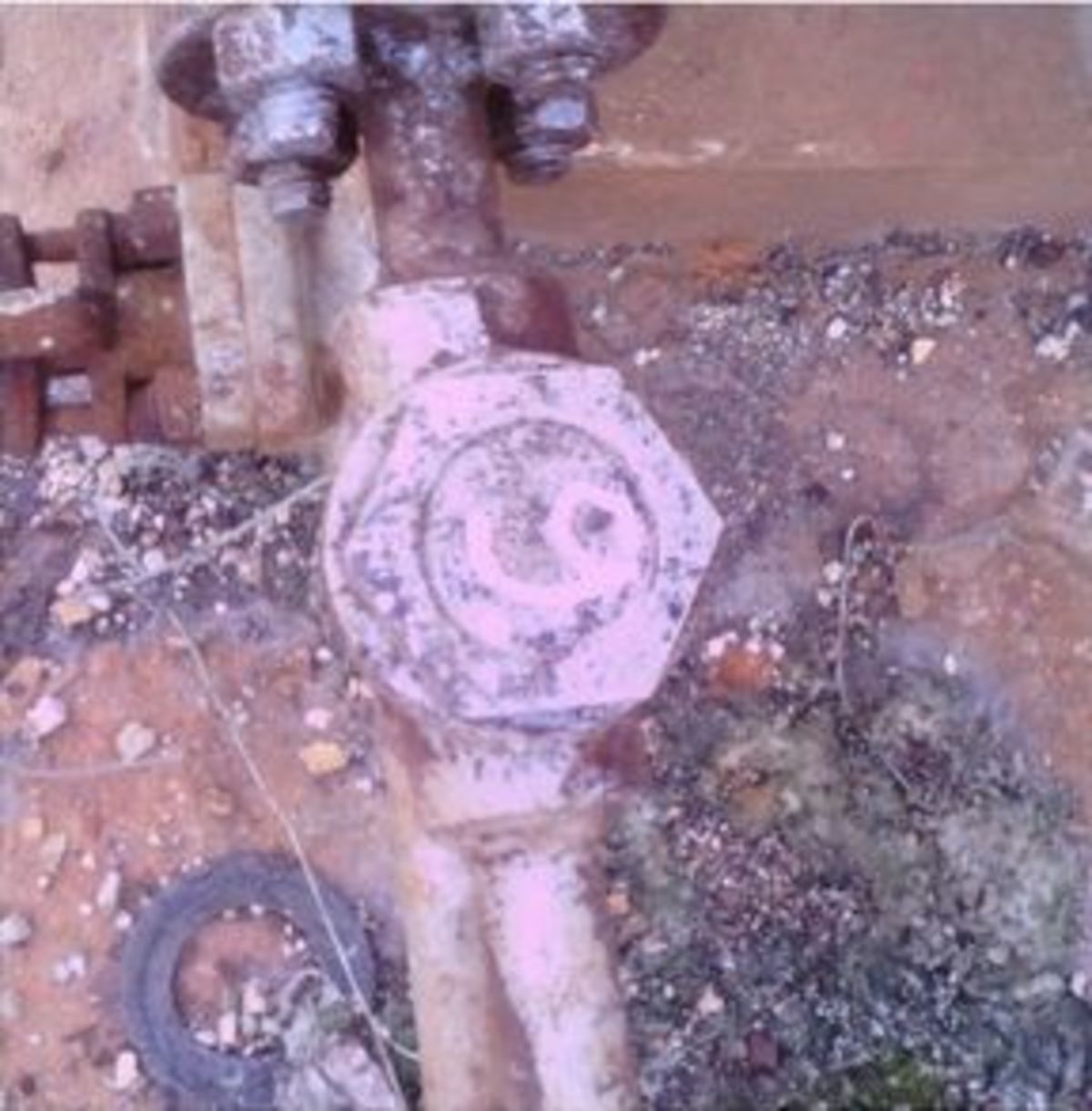

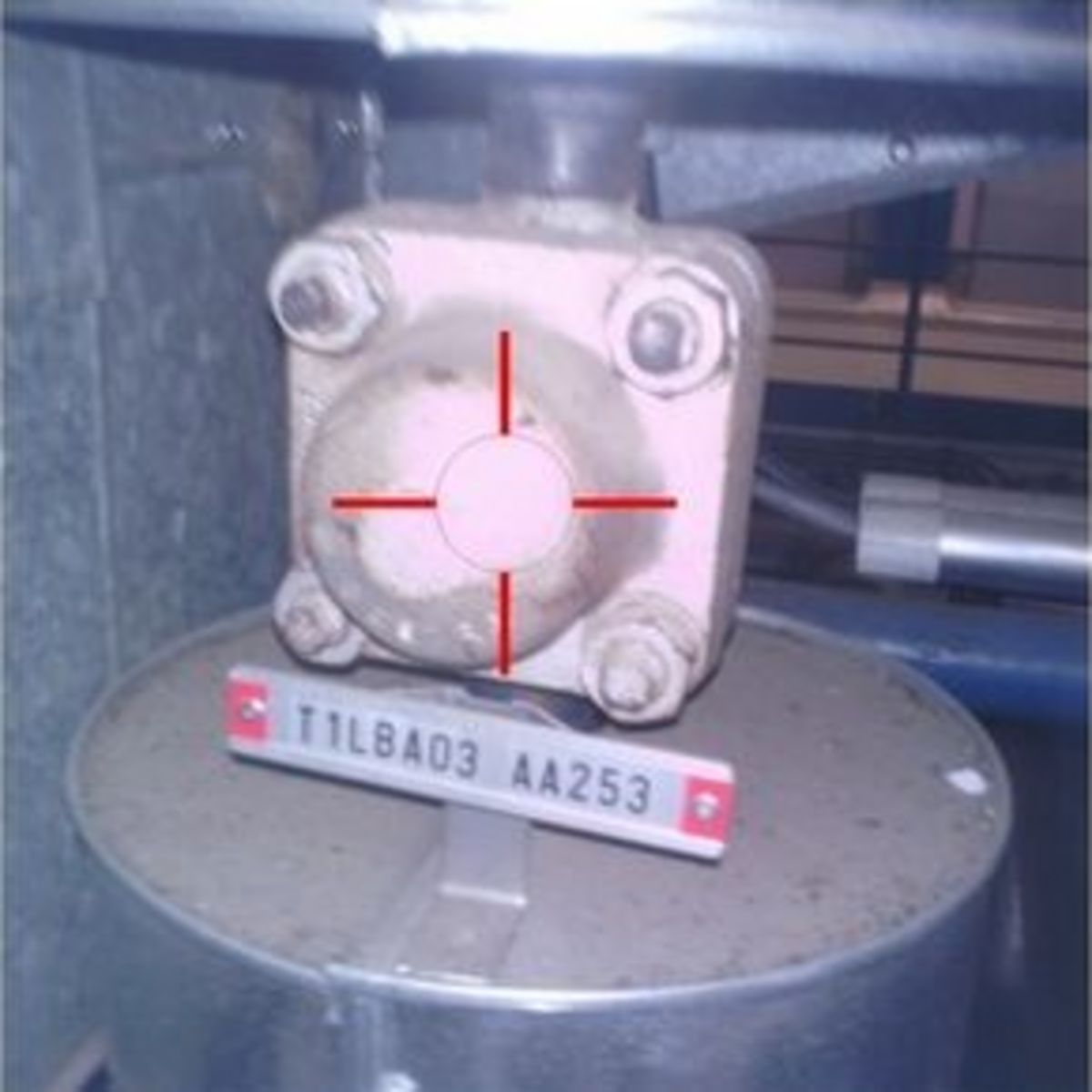

Thermodynamic Steam Trap: Faulty | Intact | Example 3
- Comparison of two thermodynamic steam traps (same pressure / same type / same manufacturer)
- Equipment: SONAPHONE and BS20 with long waveguide
- Trap 1: faulty
- Trap 2: intact

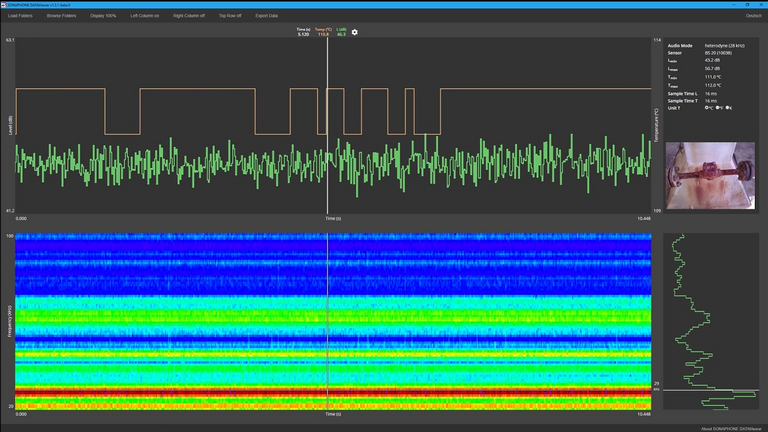

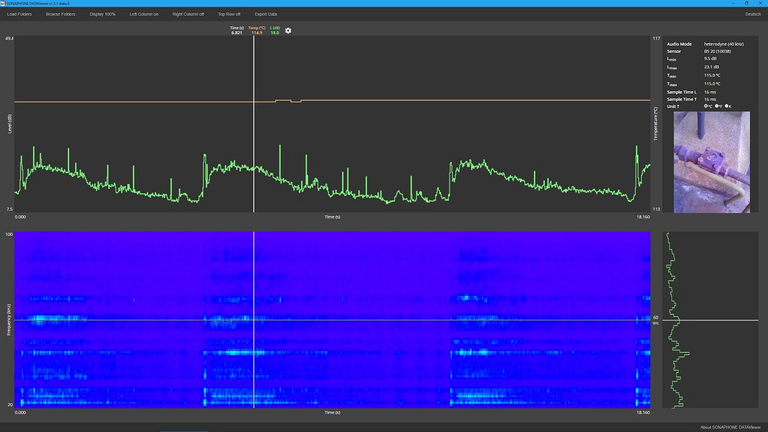

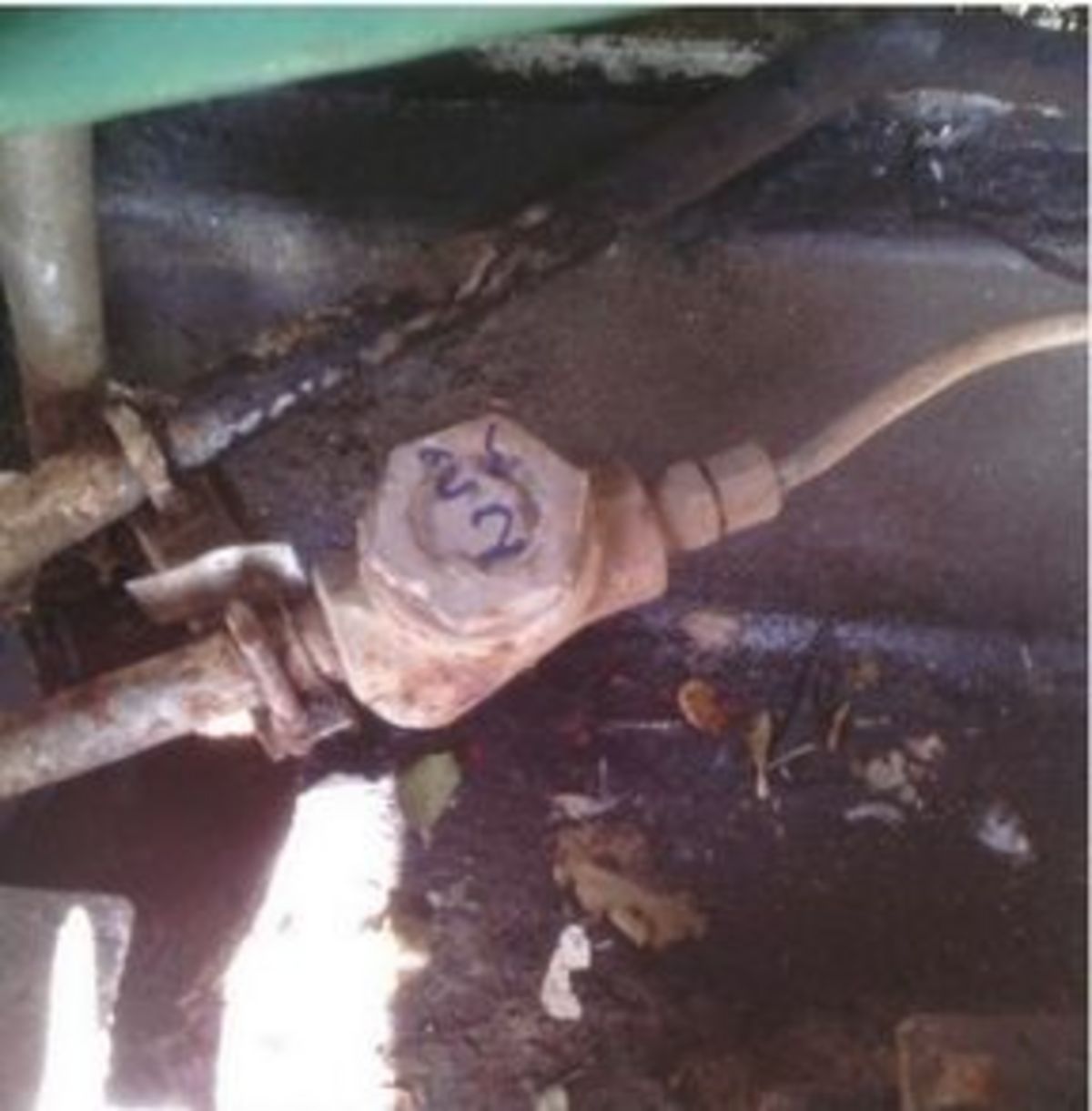

Thermostatic Steam Trap: Faulty | Intact | Example 4
- Comparison of two thermostatic steam traps (same pressure / same type / same manufacturer)
- Equipment: SONAPHONE and BS20 with long waveguide
- Trap 1: faulty
- Trap 2: intact
