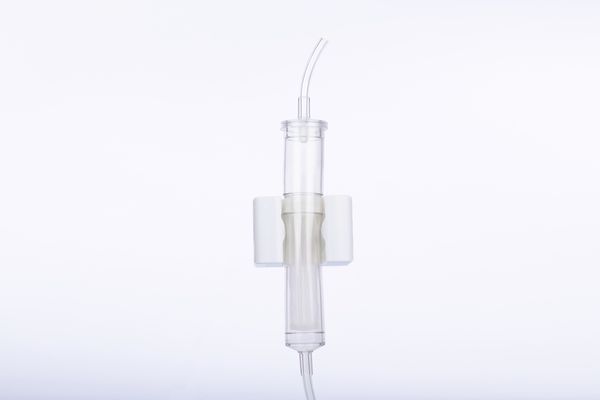

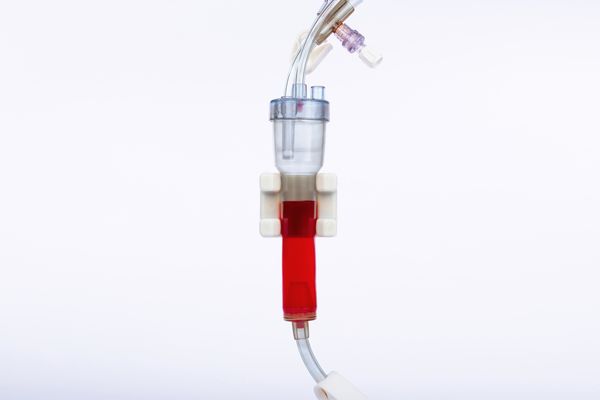

Ultrasonic Drip Chamber Sensor

SONOCHECK^® ALD - Intelligent Drip Chamber Sensor for Level Detection

Two Configurations for Manifold Specifications

There are two configurations of the ultrasonic sensor available:

• The SONOCHECK ALD01 is a single-channel sensor with one measuring point which monitors reliably a specified liquid level.
• The two-channel SONOCHECK ALD02 detects levels that vary between a minimum and a maximum value.

Both versions can be adapted customer-specific and reliably meet the safety requirements of the international standard IEC 60601-1 for medical electrical devices.

User-Friendly Drip Chamber Sensor

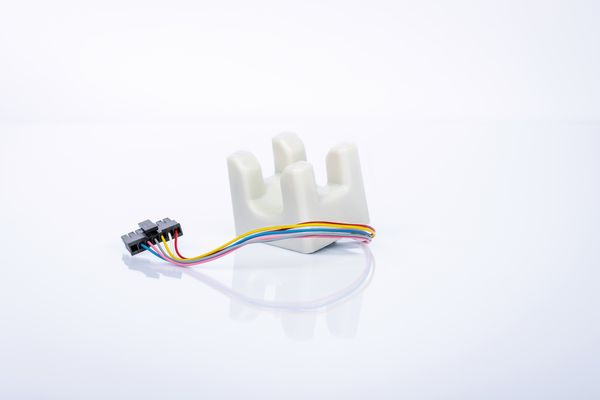

Design and dimensions of the sensors depend, inter alia, on the diameter and material of the drip chamber used. By adapting the sensors a high degree of usability is maintained. On request, the ultrasonic sensor can be equipped with an easy closing lid which ensures a secure hold of the drip chamber. The electronics are integrated into the compact non-invasive sensor. Certified according to ISO 13485 we support you with the documentation necessary for the approval of medical devices on request.
