Portable USB Data Converter

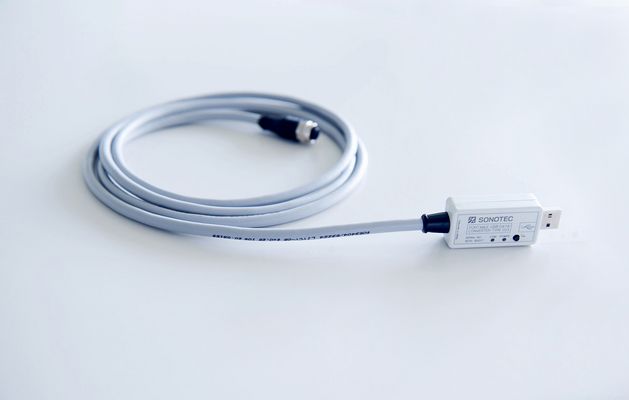

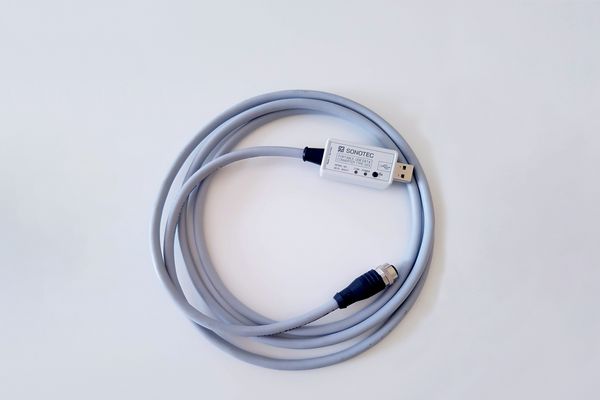

Portable USB Data Converter Type 023 - Convenient Power Supply & Data Communication

Working Principle

The electronics convert the 5 Volt standard USB voltage to 12 Volt supply voltage for the SONOFLOW and SEMIFLOW sensors. At the same time it provides an USB interface to the sensor.

The digital input of the connected sensor can be set via a switch on the top of the housing. A power LED and a communication LED indicate the operating status (on/off) and the communication (flashing when active).

Possible applications

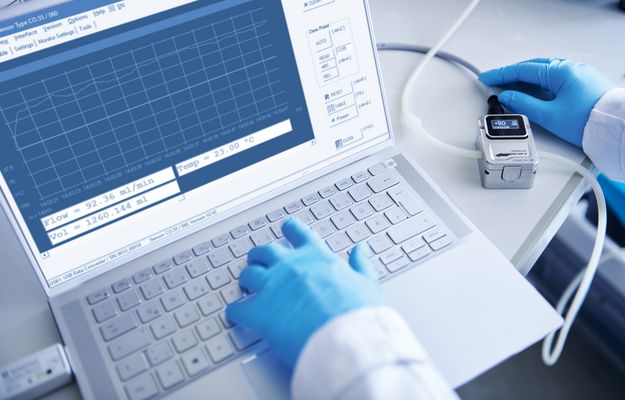

• Operation and parameterization of a sensor via the USB interface of a computer without additional cables
• Operation of a sensor via a standard USB power supply (especially useful for the SONOFLOW CO.55 sensor with integrated display or the Remote Display RD.10)
• Triggering of the functions stored for the digital input (D_IN) (e.g. Vol. reset / Auto zero / Vol. reset & Auto zero / ...)
• Only the serial interface can be used via PC. Other interfaces (current output/ frequency / D_IN / D_OUT) are not led out of the device.
